BT-410 Set
BT-410 Set

BT-410 Set

BT-410 Set
Robotis | A-000000-04172
€58.46
20 perc. French VAT inc.

Including €0.01 for ecotax

The BT-410 set includes a master module and a slave module for transmitting data over a Bluetooth BLE connection, for instance between a robot and an RC-100B type wireless controller.

Quantity
1 Available

Get it in 24/48h! (see T&C)

Ask for a quote

Create a cart and turn it into a quote instantly!
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

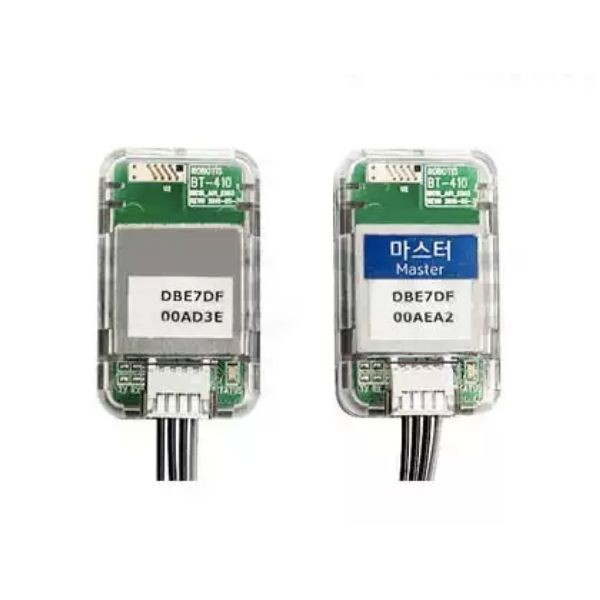

Robotis BT-410 Set: master and slave modules in a single box

The BT-410 Bluetooth set contains BT-410 master and slave modules enabling serial communication (UART) for transmitting your data wirelessly.

Install the BT-410 slave module on your robot and the master module on the RC-100B wireless remote controller. With the cables included in the set, you’ll connect them in no time.

The pairing is very easy as well: simply place the 2 modules less than 10 cm away from each other. The BT-410 modules are automatically paired.

Possible uses for the BT-410 set

The Robotis BT-410 set allows for various configurations:

  • Pairing the master module with its slave module: in this case, you don’t need to configure 2 different IP addresses;
Data transfer between the slave module and a compatible mobile phone (iOS or Android); Communication between the slave module and a PC: you’ll need to buy a separate BT-410 USB dongle to connect to your computer.

Technical specifications of the Robotis BT-410 set

  • Bluetooth specifications: 4.0 Low Energy
Range: 10 m Bandwidth frequency: 2.4 GHz ISM Bandwidth: 128 kbps max. Default transmission rate: 57,600 bps Operating voltage: 3.3V Consumption: 7 mA max. Operating temperature: approx. 0 to 40°C Baud rate range: 1,200–1,000,000 bps Single-chip antenna Interface: UART (3.3V) Sensitivity: -81 dBm (typical) Net power: approx. -6 to 4dBm (class 2) Weight: 4.5 g Dimensions: 18 x 30 x 9.1 mm

Resources for the BT-410 Bluetooth set

You’ll find below 2 useful links to make the most of your Robotis BT-410 Bluetooth set:
