  7. Dynamixel XH540-W270-T Servo Motor
Dynamixel XH540-W270-T Servo Motor
Dynamixel XH540-W270-T Servo Motor
Dynamixel XH540-W270-T Servo Motor

Dynamixel XH540-W270-T Servo Motor

Dynamixel XH540-W270-T Servo Motor
Robotis | A-000000-04193
627.96 €
20 perc. French VAT inc.

Including €0.10 for ecotax

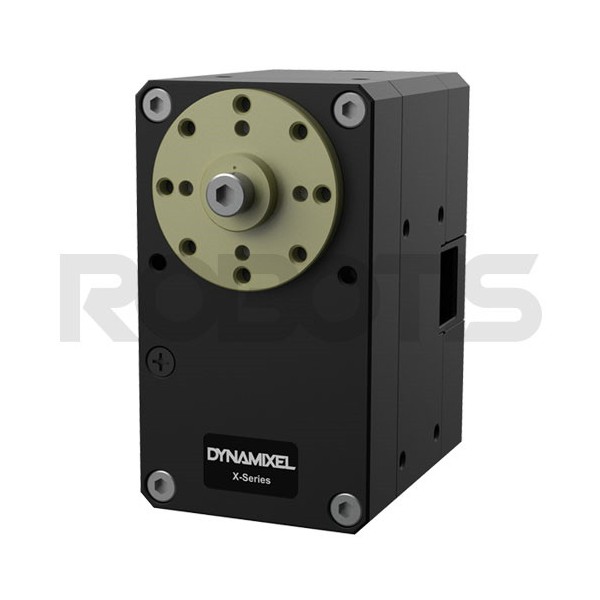

The Dynamixel XH540-W270-T servo motor generates one of the most powerful torque in the Dynamixel X series. It offers all the advantages of Robotis XH servos in terms of high-quality design and control modes–plus a TTL interface.

Quantity
Delivery within 4 weeks
Ask for a quote

Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

Dynamixel XH540-W270-T servo motor: a powerful TTL version

With a 9.9 Nm starting torque and a 272.5:1 reduction ratio, the Dynamixel XH540-W270-T servo motor is making a name for itself as one of the most powerful actuators in its class. Similar to the XH540-W270-R model in terms of performance, this servo offers for its part a multidrop bus TTL interface.

Performance of Dynamixel X-series servomotors

Particularly well suited for building mobile robots meant to explore rough terrain, this Dynamixel servo also stands out for its numerous programming possibilities. You’ll benefit from 6 control modes, including in PWM mode, which will delight fans of radio-controlled vehicles. You can connect it directly to a PC using a U2D2 Dynamixel module or an Arduino microcontroller (or any compatible controller) thanks to the provided JST-Molex cable.

Dynamixel XH series servo motors: extreme manufacturing quality

The programmable servos in the Dynamixel XH range benefit from a high-quality design in many ways:

  • The gold-plated JST connector ensures more reliable and stable communications than a Molex connector;
  • The precious metal and engineering plastic casing delivers very satisfactory heat dissipation;
  • 3 different arrangements are possible for the cable at the back of the case, and numerous assembly configurations are possible thanks to a wide range of compatible frames.

Technical specifications of the XH540-W270-T servo

  • Cortex M3 microcontroller (72 MHz, 32 bits)
  • Input voltage: 10 -14.8V (recommended: 12V)
  • Performance characteristics
    • Voltage rating: 12V
    • Starting torque: 9.9 Nm
    • Starting current: 4.9A
    • No-load speed: 39 rpm
    • No-load current: 0.07A
    • Resolution: 0,0879° x 4,096
  • Angle: 360°
  • Reduction ratio: 272.5:1
  • Position sensor: absolute contactless encoder (12 bits, 360°)
  • Operating temperature: -5 to 80°C
  • Coreless Maxon motor
  • Baud rate: 9,600–4,500,000 bps
  • PID control algorithm
  • Gear type: straight spur
  • Gear material: precious metal
  • Case material: precious metal and engineering plastic
  • Dimensions: 33.5 x 58.5 x 44 mm
  • Weight: 165 g
  • Control signal: digital packets
  • Protocol: half-duplex asynchronous serial communication (8 bits, 1 stop, no parity)
  • Connection: TTL multi-drop bus
  • IDs: 0~252
  • Feedback: position, velocity, current, realtime tick, trajectory, temperature, voltage, external port, etc.
  • Protocol version: 1.0, 2.0 (default)
  • Operating mode/angle:
    • Position control mode: endless turn
    • Velocity control mode: endless turn
    • Position control mode: 360°
    • Extended position control mode: +/- 256 revolutions
    • Current-based position control mode: +/- 256 revolutions
    • PWM control mode: endless turn
  • Standby current: 40 mA
How to choose the right Dynamixel servomotor?

Resources for the Robotis Dynamixel XH540-W270-T servo

To make the most of all the possibilities offered by the Dynamixel XH540-W270-T servo motor, review these useful links:

    My Dynamixel servomotor is not detected, what can I do about it ?

    Check that your Dynamixel servomotor is correctly configured. Do not hesitate to re-flash it with the ROBOTIS Software Roboplus. After re-flash remember to re-configure it. If the issue is not solved, contact us for an advanced support.

    My motor works but it seems like there is an offset. Why ?

    The motor is probably not well mounted. Check that you correctly mounted the horns by respecting the mark.

    My Dynamixel servomotor seems blocked. I can't turn it even when it is not alimented.

    There is probably a mechanical issue with the Dynamixel servomotor. You can directly contact us to get more advance support.

    My Dynamixel servomotor is not working properly.

    Check your power supply and the system cabling (try with a different servomotor). You can also reset the servo. If nothing works, the best solution is to go through the Dynamixel servomotor checklist!

    What is the difference between Protocol 1.0 and Protocol 2.0?

    The 1.0 protocol is dedicated to the Dynamixel AX and MX series. Protocol 2.0 is for the X and Dynamixel Pro series. Protocol 2.0 control tables include PID controls which allow for more precise adjustment of the servo motor movements. Protocol 2.0 can be updated on MX series servo motors. You can refer to the protocol 1.0 and protocol 2.0 pages for more informations.
