Dynamixel-Y servomotors
The DYNAMIXEL-Y range represents an evolutionary leap within the DYNAMIXEL series, incorporating its renowned attributes while introducing advancements for even better performance. Thanks to its capability for high speeds and precise positional control, DYNAMIXEL-Y enables the creation of systems that are both fast and accurate. The integration of electronic brakes and DYD Cycloidal gear reducers not only enhances safety but also reliability. This innovative iteration of DYNAMIXEL elevates its legacy by improving performance and expanding its capabilities.
| Model | Torque [N.m] | No-load Speed [rpm] | Resolution [pulse/rev] | Dimensions (mm) | Weight (g) | Datasheet |
| YM070-210-M001-RH | 0.32 | 5,675 | 524,288 | 70 x 50.9 | 340 | View |
| YM070-210-R051-RH | 8.2 | 111.3 | 26,738,688 | 70 x 71.1 | 790 | View |
| YM070-210-R099-RH | 14.6 | 57.3 | 51,904,512 | 70 x 71.1 | 790 | View |
| YM080-230-M001-RH | 0.62 | 3,190 | 524,288 | 80 x 54.1 | 530 | View |
| YM080-230-R051-RH | 15.8 | 62.5 | 26,738,688 | 80 x 78.1 | 1,200 | View |
| YM080-230-R099-RH | 26.0 | 32.2 | 51,904,512 | 80 x 78.1 | 1,200 | View |
The Dynamixel M070-210-M001-RH, equipped with an RS485 connection, is an actuator in the Dynamixel-Y series developed by Robotis. This intelligent actuator offers top-level performance.
The Dynamixel M070-210-R051-RH, equipped with an RS485 connection, is an actuator in the Dynamixel-Y series developed by Robotis. This intelligent actuator offers top-level performance.

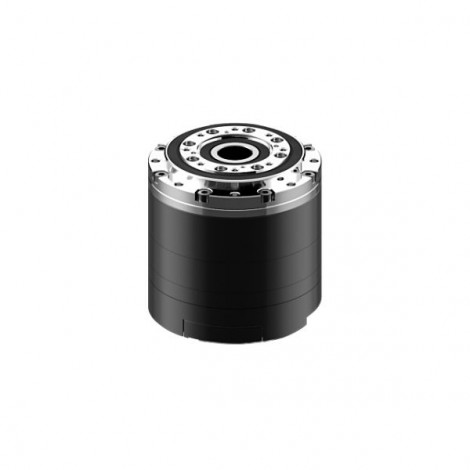

The Dynamixel M070-210-R099-RH, equipped with an RS485 connection, is a Dynamixel-Y series actuator developed by Robotis. This intelligent actuator offers top-level performance.

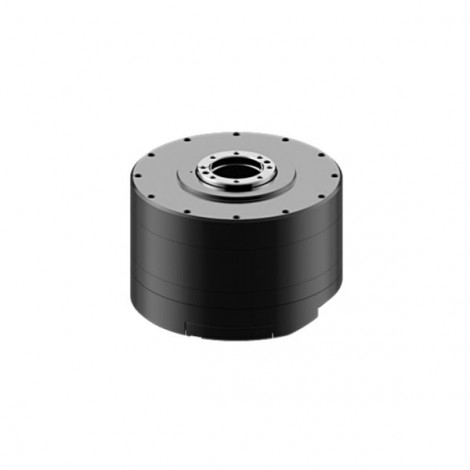

The Dynamixel M080-230-M001-RH, equipped with an RS485 connection, is an actuator in the Dynamixel-Y series developed by Robotis. This intelligent actuator offers top-level performance.

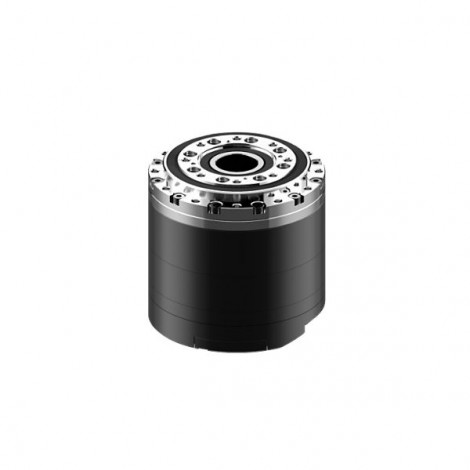

The Dynamixel M080-230-R051-RH, equipped with an RS485 connection, is an actuator in the Dynamixel-Y series developed by Robotis. This intelligent actuator offers top-level performance.
The Dynamixel M080-230-R099-RH, equipped with an RS485 connection, is a Dynamixel-Y series actuator developed by Robotis. This intelligent actuator offers top-level performance.
The YM070-210-B001-RH Servo Motor is designed for applications requiring precise positioning and speed, particularly in modular robotic systems or custom configurations.
The YM070-210-A051-RH servomotor is an all-in-one unit with an integrated cycloidal reducer, specifically designed for the DYNAMIXEL DRIVE (DYD) DYD-14H-051 model.
The YM070-210-A099-RH servomotor is an all-in-one unit with an integrated cycloidal gearbox, specifically designed for the DYNAMIXEL DRIVE (DYD) DYD-14H-099 model.
The YM080-230-B001-RH servo motor is a high-performance, brushless (BLDC) all-in-one unit, specially designed for robotic applications requiring precise control of position, speed, and torque. I
The YM080-230-A051-RH servo motor is an all-in-one unit with an integrated cycloid gearhead, specifically designed for the DYNAMIXEL DRIVE (DYD) DYD-17H-051 model.
The YM080-230-A099-RH servomotor is an all-in-one unit equipped with an integrated cycloidal reducer, specifically designed for the DYNAMIXEL DRIVE (DYD) DYD-17H-099 model.
