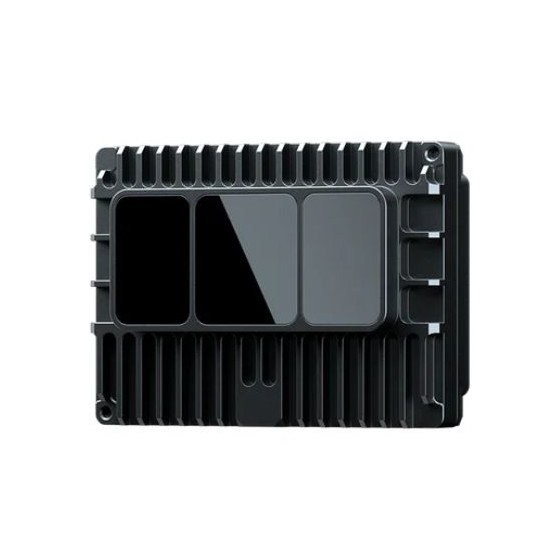

Robosense E1R LiDAR (with accessories)
Robosense | A-000000-07645
€1,320.00
20 perc. French VAT inc.
The E1R is a LiDAR sensor offering a 120°×90° field of view, a detection range of up to 75 m, and high-density point cloud output. Compact, reliable, and precise, it is ideal for navigation, mapping, and obstacle avoidance in all robotic applications.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
E1R – Ultra-Compact Digital 3D LiDAR for Autonomous Robots
The E1R is the first fully solid-state digital LiDAR designed for intelligent robots and demanding environments. Based on a high-end automotive platform, it combines compact design, high performance, and industrial-grade reliability. With a 120°×90° ultra-wide field of view and a range of up to 75 meters, it enables accurate detection of objects, distances, and contours even in extreme lighting conditions.
Perfect for applications such as autonomous navigation, 3D mapping, and obstacle avoidance, the E1R is already used in delivery robots, cleaning robots, humanoid robots, and even drones.
Main features
- Ultra-wide field of view: 120° × 90° for extended coverage
- Long-range detection: Up to 75 m (30 m @ 10% reflectivity)
- High data rate: 260,000 points/second with 144 beams for high-density point cloud
- Proprietary SPAD-SoC technology: Over 250,000 pixels, improved detection accuracy
- 2D VCSEL electronic scanning: Fast scanning, no moving parts
- Ultra-compact design: 7×35×75 mm with flat window, easy integration
- Extreme durability: Operates from -40°C to +85°C, IP67 / IP6K9K protection, shock resistance
Benefits for your robots
- Precise autonomous navigation indoors and outdoors
- Reliable 3D mapping of roads, warehouses, and urban or industrial areas
- Real-time detection of static and dynamic obstacles (pedestrians, vehicles, cones…)
- Easy integration with flat design and standard 1/4" mount
- Adapted to extreme conditions, dust, rain, and strong lighting
Application areas
- Autonomous delivery robots
- Professional cleaning robots
- Autonomous taxis (RoboTaxi)
- Service robots for business or reception
- Humanoid robots
- Industrial drones
Technical specifications of Robosense E1R LiDAR
- Field of View (FOV): 120° × 90°
- Detection range: Up to 75 m
- Sampling rate: 260,000 pts/s
- Emission technology: 2D VCSEL electronic
- Architecture: 100% digital SPAD-SoC
- Compact size: 7 × 35 × 75 mm
- Mounting: Universal 1/4” thread
- Operating temperature: -40°C to +85°C
- Environmental resistance: IP67 / IP6K9K
The E1R is a LiDAR sensor offering a 120°×90° field of view, a detection range of up to 75 m, and high-density point cloud output. Compact, reliable, and precise, it is ideal for navigation, mapping, and obstacle avoidance in all robotic applications.
