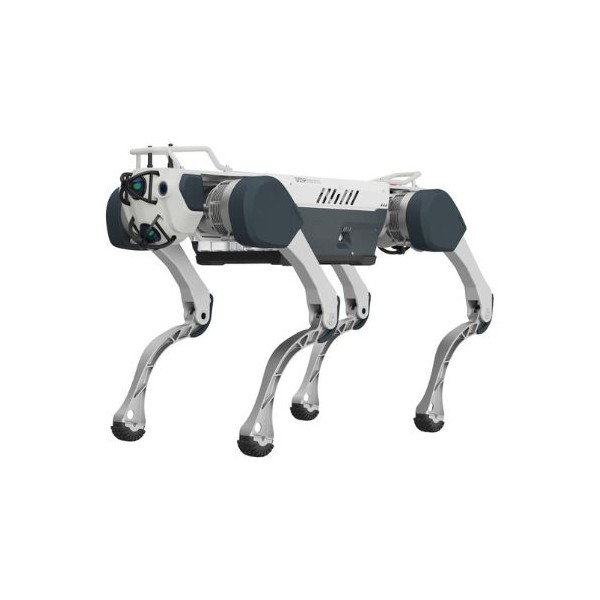

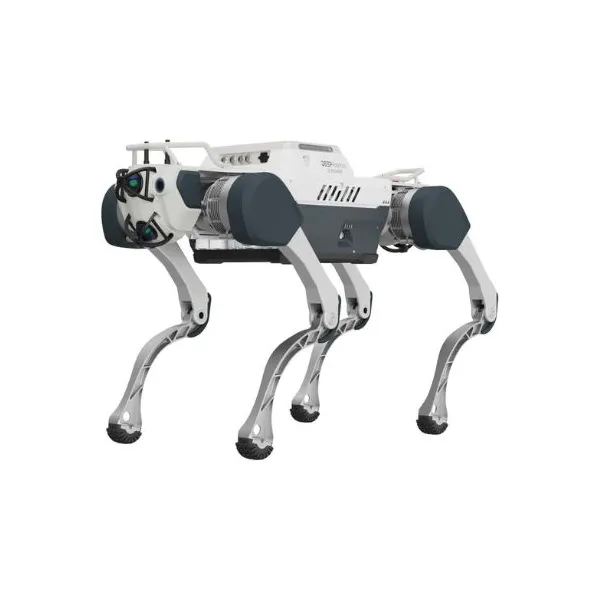

X30 quadruped robot
Deep Robotics | A-000000-07421
Prix sur demande
The X30 from Deep Robotics embodies technological excellence in quadruped robotics. It is a key solution for industries requiring autonomous, safe, and reliable inspections in extreme or complex environments.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
X30: a robust solution for extreme industrial environments
The X30 is a high-end quadruped robot developed by Deep Robotics to meet industrial needs in various fields such as inspection, security, mapping, and surveillance. Designed for extreme environments, it combines robustness, autonomy, and advanced adaptability capabilities.
Key features of the X30
Resistance to extreme conditions
- Operating temperatures: -20°C to 55°C.
- Protection rating: IP67, ensuring full dust and water resistance.
Advanced mobility
- Capable of climbing and descending stairs inclined up to 45°.
- Agile navigation in complex environments, including confined and industrial spaces.
High-performance sensors
- Integration of advanced sensors and algorithms allowing autonomous navigation in total darkness, strong or flickering light, and even without any light source.
- High-resolution cameras providing RGB and thermal images, ideal for detailed inspections.
Endurance and modularity
- 25% increased autonomy with a quickly replaceable battery, optimized for emergency interventions.
- Modular design allowing the addition of sensors to meet a wide variety of scenarios.
Applications
Industrial inspection
- Hazardous Environments: Operates in high-risk areas, such as those with extreme temperatures or hazardous materials.
- Precision: Eliminates human errors with automatic defect and anomaly detection algorithms.
Security and surveillance
- Capable of covering large areas inaccessible to humans.
- Real-time monitoring with incident detection and detailed reporting.
Mapping and modeling
Collects precise data through advanced sensors for creating 3D models or analyzing complex environments.
X30 and X30 Pro Specifications
X30 | X30 Pro | |
| Dimensions | 1000 x 585 x 470 mm | 1000 x 585 x 470 mm |
| Weight | 56 kg | 59 kg |
| Autonomy | 2.5h ~ 4h | 2.5h ~ 4h |
| Range | 10 km | 10 km |
| Climbing Capability | 45° | 45° |
| Maximum Step Height | 20 cm | 20 cm |
| Payload | 20 kg | 20 kg |
| Speed | 4 m/s | 4 m/s |
| Protection Rating | IP67 | IP67 |
| Operating Temperature | -20°~55° | -20°~55° |
| Sensors | 4x LiDAR + Camera | 4x LiDAR + Camera + Optional RTK Module |
| Communication | Interface: Ethernet Power Supply: (72V BAT) | Interfaces: USB 2.0, USB 3.0, Ethernet, WiFi Power Supply: 5V, 12V, 24V |
The X30 from Deep Robotics embodies technological excellence in quadruped robotics. It is a key solution for industries requiring autonomous, safe, and reliable inspections in extreme or complex environments.
