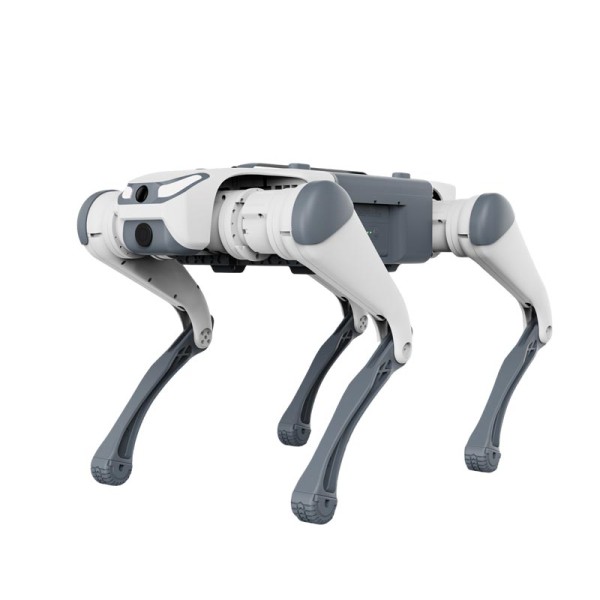

Lite 3 Quadruped Robot
Deep Robotics | A-000000-07424
Price upon request
The Lite 3 is an advanced quadruped robot designed to combine power, agility, and flexibility, with a modular structure suitable for advanced robotics developments.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
Lite 3: a quadruped dedicated to Research and Development
The Lite 3 from Deep Robotics combines robustness, agility, and adaptability. Built with cutting-edge technologies, it excels in various applications thanks to its tripled computing power, real-time industrial-grade control, and extensive customization options.
The Pro and Pro LiDAR versions are natively compatible with ROS and can be programmed right from deployment.
Key Features of the Lite 3
Physical Performance
- +50% torque thanks to high-density joint modules.
- Maximum payload of 7.5 kg.
- Up to 90 minutes of battery life.
- Can climb steps up to 15 cm.
- Complex actions: jumps, dancing, and automatic recovery.
Industrial-Grade Control
- Tripled computing power.
- Control frequency: up to 1 kHz for real-time communication and responsiveness.
- Industrial-grade IMU: improved stability and calculations.
Modular Structure and Open-Source Interfaces
- Supports advanced modules (RTK, 5G, AI processors, sensors).
- Compatible with advanced development via SDK/API (navigation, 3D mapping, obstacle avoidance).
- Advanced interaction and perception.
- Improved transmission: reduced latency for smooth FPV view.
- Smart lighting indicators: real-time status visibility for better interaction.
- Enhanced safety: automatic stop, object tracking, and autonomous navigation.
BOW: a versatile platform for software development
BOW is a software development platform that offers great flexibility by supporting almost all programming languages, including ROS, Python, and C++.
License-related terms of use:
- The standard BOW license is valid for one year.
- If the license expires, you can continue using BOW for development.
- However, without a valid license, transferring developments made on BOW to a robot becomes impossible.
For an extended license, contact us directly to learn about the available options.
Only the Lite 3 Pro and Lidar are directly compatible with ROS without requiring BOW.
4 Available Versions: Basic, Venture, Pro & LiDAR
Basic | Venture | Pro | Pro LiDAR | |
| Dimensions | 610 x 370 x 406 mm | 610 x 370 x 445 mm | 610 x 370 x 445 mm | 610 x 370 x 503 mm |
| Weight | 12 kg | 12.2 kg | 12.7 kg | 13.7 kg |
| Battery life | 1.5h ~ 2h | 1.5h ~ 2h | 1.5h ~ 2h | 1.5h ~ 2h |
| Distance | 5 km | 4 km | 3.4 km | 2.7 km |
| Climbing capacity | 40° | 40° | 40° | 40° |
| Maximum step height | 15 cm | 15 cm | 15 cm | 15 cm |
| Payload | 7.5 kg | 7 kg | 6.5 kg | 5 kg |
| Perception capabilities | Automatic stop front and back Object tracking | Automatic stop front and back Object tracking | Automatic stop front and back Object tracking Obstacle avoidance | Automatic stop front and back Object tracking Obstacle avoidance Auto-navigation |
| Interface | / | Ethernet Input (5V/12V/24V) | Type-C; USB3.0; HDMI; Ethernet; Input (5V/24V) | Type-C; USB3.0; HDMI; Ethernet; Input (5V/24V) |
| Secondary development | / | Provides the Urdf model for simulation, SDK, API, perception interface, and related documents. | Provides the Urdf model for simulation, SDK, API, perception interface, and related documents. ROS included | Provides the Urdf model for simulation, SDK, API, perception interface, and related documents. ROS included |
Resources for the Lite 3 Quadruped Robot - Deep Robotics
The Lite 3 is an advanced quadruped robot designed to combine power, agility, and flexibility, with a modular structure suitable for advanced robotics developments.
