ODROID-H3+ Development Board

Hardkernel | A-000000-07125
€296.40
20 perc. French VAT inc.

Available with 64GB, the ODROID-H3+ development board stands out for its use of a Jasper Lake chip, Pentium N6005.

Quantity
2 Available

Get it in 24/48h! (see T&C)

Ask for a quote

Create a cart and turn it into a quote instantly!
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

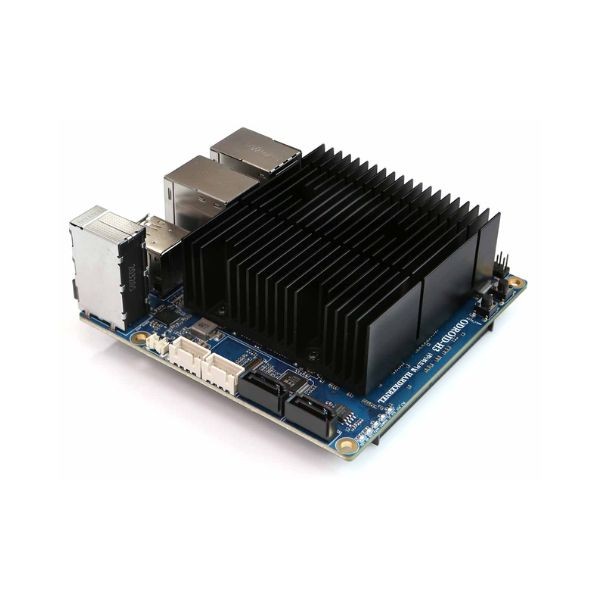

Odroid-H3+: a Pentium N6005 development board

The ODROID-H3+ retains the same physical design and comparable energy efficiency as its predecessor, the ODROID-H2+, but boasts increased power and higher performance.

This new x86-64-bit single-board computer is characterised by vast storage capacity, sophisticated I/O connection options and broad compatibility:

  • The Intel® Quad-Core Jasper Lake N6005 processor has a base frequency of 2 GHz and a boost frequency of 3.3 GHz, with 1.5 MB of L2 cache and 4 MB of L3 cache, manufactured using a 10 nm process
  • Up to 64 GB dual-channel DDR4 PC4-23400 memory (2933MT/s)
  • Two SO-DIMM slots, up to 32 GB per slot
  • PCIe 3.0 x 4 channels for M.2 NVMe storage
  • 2 x 2.5 Gbps Ethernet ports
  • 2 SATA 3.0 ports
  • SSE4.2 accelerator (SMM, FPU, NX, MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AES)
  • Intel UHD Graphics with 32 execution units and turbo at 900 MHz
  • HDMI 2.0 and DP 1.2 multiple video outputs
  • Configurable Unlimited Performance mode enabling the CPU to operate in sustained turbo boost mode
  • RTC / BIOS battery backup included

In short, the Odroid-H3+ is a versatile card par excellence. It's perfect for setting up a discreet, compact workstation, but can also be integrated into furniture, used in kiosks, as video projectors or transformed into multimedia systems for vehicles. Its power is sufficient to handle a variety of tasks, meeting the expectations of most users.

Odroid-H3+ technical specifications

Processor:

  • Intel Celeron N6005 (10nm, Quad-Core, TDP 10W)
  • H3+(N6005): up to 3.3Ghz
  • 4MB L2 cache
  • Intel UHD graphics (24/32 EU up to 900MHz)

Memory:

  • 2 SO-DIMM DDR4 1.2V slots
  • Dual channel, up to 2933 MT/s (DDR4-PC23400)
  • Maximum memory capacity 64GB
  • DDR3/DDR5 are not supported

Storage:

  • 1 eMMC connector (bootable and selectable in the BIOS)
  • Various eMMC modules can be purchased from Hardkernel
  • 2 SATA3 6Gbps ports (SATA Port-Multiplier is NOT compatible)
  • 1 M.2 slot (PCIe 3.0 x 4, supports NGFF-2280 cards)
  • SSD M.2 SATA is not supported

Network:

  • 2 GbE LAN ports (RJ45, supports 10/100/1000/2500 Mbps)
  • Realtek RTL8125B
  • Supports wake-up by network
  • LED indicators (Green: Link, Amber: Traffic)

Video:

  • 1 DisplayPort 1.2 (up to 4K@60Hz)
  • 1 HDMI 2.0 (up to 4K@60Hz)
  • Dual simultaneous display support

Audio:

  • 1 audio output (3.5 mm jack)
  • 1 audio input (3.5mm jack)
  • 1 SPDIF output (ALC1200, HDA codec)
  • HDMI & DP also have an audio output.

External I/O:

  • 2 USB 3.0 host ports
  • 2 USB 2.0 host ports
  • 1 peripheral expansion header (24-pin, 2.54mm pitch)
  • 1 x DC 5V, 1 x DC 3.3V, 5 x GND
  • 1 x UART (TXD/RXD/RTS/CTS)
  • 2 x I2C (SCL/SDA)
  • 1 x external power button
  • HDMI CEC via add-on card, 5VA+
  • 3 x USB 2.0
  • All 3.3V I/O signal levels

Other features:

  • Passive heat sink
  • BIOS backup battery
  • Maintains system time and BIOS settings
  • Power button
  • Reset button
  • System LED indicators:
  • Red (PWR) - Steady light when DC power is supplied
  • Blue (left, SLEEP) - goes out only when the system enters standby mode
  • Blue (right, PMIC) - lights up only when the main power rails are operating
  • Amber (SATA) - Flashes during SATA data transfers
  • Green (NVMe) - Flashes during NVMe data transfers
  • Connector for active cooling fan (12V 4-pin, PWM input + TACHO output)
  • Active cooling fan is optional
  • Connector (4-pin, 2.54mm pitch)

Power supply:

  • DC socket: outside diameter (earth) 5.5mm, inside diameter (positive) 2.1mm
  • DC 14V ~ 20V (up to 60W)
  • DC 15V/4A power adapter recommended if you're not using two 3.5" hard drives
  • DC 19V/7A power adapter recommended if using two 3.5" hard drives together

Energy consumption:

  • IDLE: ≃1..9W
  • CPU stress: ≃15W
  • CPU+GPU stress: ≃18W<
  • Switch-off: ≃0.25W<
  • Standby: ≃0.6W
  • Dimensions: 110mm x 110mm x 47mm
