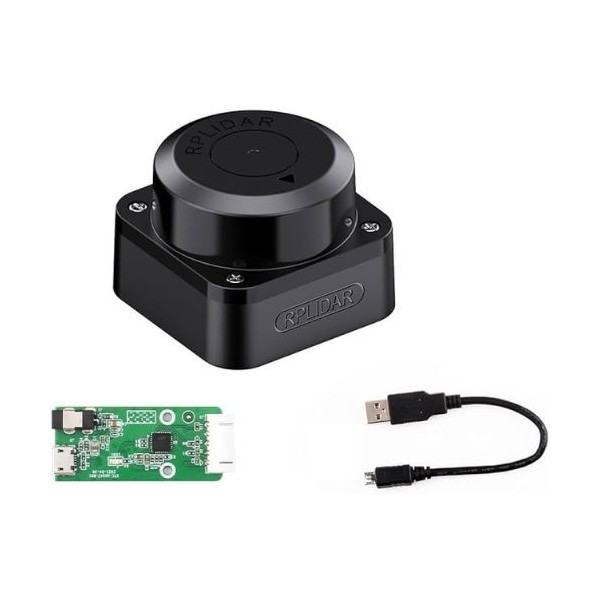

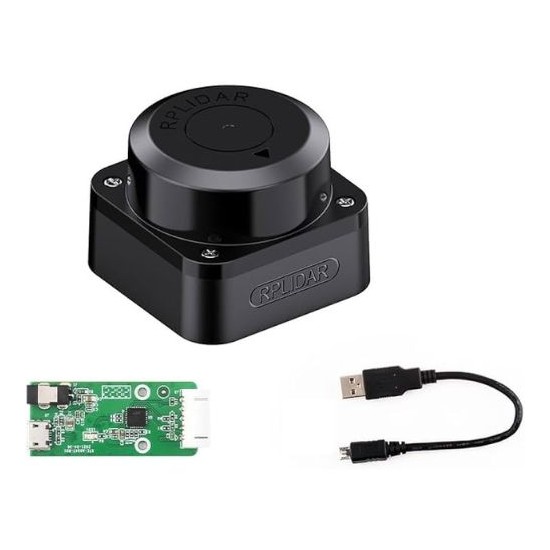

360° RPLIDAR C1 SLAMTEC
360° RPLIDAR C1 SLAMTEC

360° RPLIDAR C1 SLAMTEC

360° RPLIDAR C1 SLAMTEC
Slamtec | A-000000-06970
€81.12
20 perc. French VAT inc.

SLAMTEC has introduced the RPLIDAR C1, a cost-effective and high-definition LiDAR.

Quantity
In backorder
This product is on backorder. You can place an order on our website or send us a purchase order in PDF format
Contact us to know the delivery times
Ask for a quote

Create a cart and turn it into a quote instantly!
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

RPLIDAR C1: high-definition, cost-effective LiDAR

To meet the need for equipping consumer robots with precise environmental perception capabilities while satisfying the requirements for long-distance sensing and high sensitivity, SLAMTEC has introduced a new generation of laser scanners of the DTOF (Direct Time of Flight) type called RPLIDAR C1. This LIDAR integrates years of expertise and excels particularly in high-definition scanning of small nearby objects, with anti-interference and anti-adhesion capabilities. With a measurement radius of 12 meters, a sampling frequency of 5000 times per second, and 360-degree laser scanning across the entire range, its compact and agile appearance fully meets the needs of applications such as robot positioning, mapping, navigation, and obstacle avoidance in various environments.

RPLIDAR C1 highlights

12 m

70% Reflectivity

0.05 m

Blind Range

360°

Range Scanning

HD

HD Fusion Technology

±30 mm

Ranging accuracy

110 g

Weight

RPLIDAR C1's technology

HD High Definition and Cost-Effectiveness

The RPLIDAR C1 builds on the expertise accumulated by SLAMTEC over the years in triangulation and DTOF telemetry. This integration enables the C1 to meet requirements for positioning, mapping, and robot navigation by ensuring remarkable precision in telemetry, distance measurement, as well as advanced capabilities in anti-interference and anti-adhesion.

HD RPLiDAR C1

Enhanced Perception but Not Limited to Flat Surfaces

With the SL-DTOF telemetry technology developed, the RPLIDAR C1 provides not only positioning data but also information on reflectivity and 2.5D multidimensional data. This enables obtaining a richer set of reference points.

Perception RPLiDAR C1
SL DTOF RPLiDAR C1

12m Range and Ease in Tackling Diverse Object Detection Challenges

The RPLIDAR C1 offers an extended measurement range of up to 12 meters, with a minimal blind zone of only 0.05 meters. This capability facilitates easy scanning and measurement of objects at various distances, while also aiding in obstacle avoidance.

Range RPLiDAR C1

Compact and Easy to Integrate

The RPLIDAR C1 excels not only in performance but also stands out for its compact and agile design. With its small size, low levels of noise, and vibration, it seamlessly integrates into a variety of applications. Its compactness and versatility significantly expand the possibilities and applications it can be assigned to.

Compact RPLiDAR C1

RPLIDAR C1 Technical Specifications

  • Applications: Indoor/Outdoor
  • Dimensions: 55.6 x 55.6 x 41.3 mm
  • Angular Resolution: 0.72°
  • Scanning Frequency: 10Hz
  • Sampling Frequency: 5KHz
  • Accuracy: ±30mm
  • Operating Range: 12M
  • Angular Range: 360°
  • Weight: 110g

RPLIDAR C1 Resources
