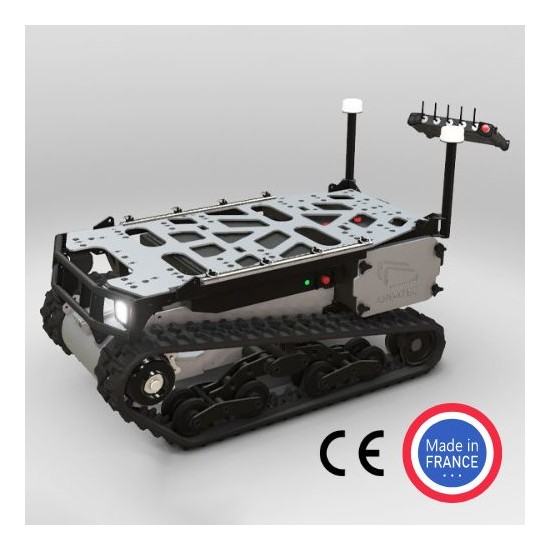

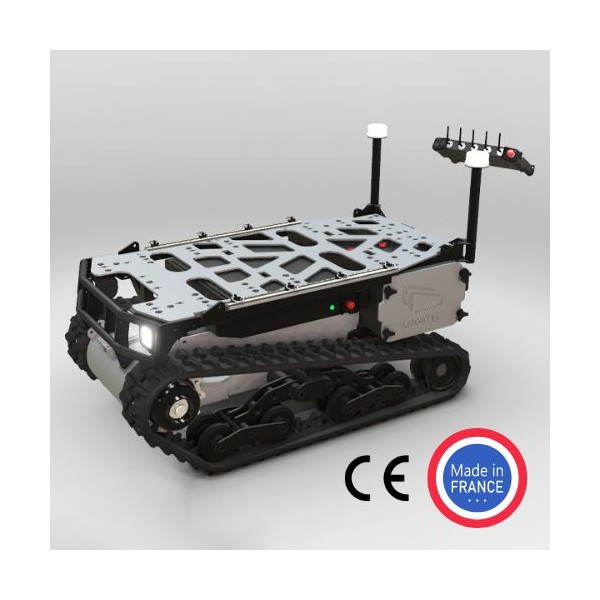

TEC800 Mobile Tracked Robot (UGV)
Angatec | A-000000-05338
Price upon request
The TEC800 mobile robot is a tracked, remote-controlled UGV unit. It’s a powerful and customisable platform, ideal for research and R&D centres wanting to work on robotics applications.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
An obstacle-proof platform
The TEC800 tracked robot is a platform designed to be both powerful and agile:
- It can carry up to 800 kg of material
- Slopes, inclines, stairs, obstacles – this tracked robot is equipped with all the systems and shock absorbers necessary to overcome uneven terrain
- The TEC800 can reach speeds of up to 12 km/h.
- It has an IP66 waterproof rating, which is the highest level of protection against dust, and also means the platform can withstand strong jets of water arriving from all directions
- The TEC800 robot is equipped with efficient brushless motors and requires no maintenance
- Its removable Li-ion batteries give it an autonomy of 22 km
A robot you can control from up to 5 km away
The TEC800 has 2 communication modes: a WiFi module (up to 1000 metres away) and a military grade radio (optional) for controlling the platform from up to 5 km away. The robot is also equipped with its own monitoring system, so you can check its operating status whenever you want in real time.
The robot’s activity is recorded continuously in a black box, meaning you can also use your TEC800 for reconnaissance, surveillance and environmental monitoring missions.
Customise your TEC800 to your needs
Thanks to its 800 kg payload and generous size, this platform can accommodate a wide range of accessories, from an autonomous navigation module to a video or weather monitoring system. So you can easily transform your TEC800 into a surveillance, transport or recognition robot.
1st in the CoHoMa robotics challenge
Angatec's TEC800 tracked robot won first prize at the CoHoMA robotics challenge, an event jointly organised by Battle Lab Terre and the Defence Innovation Agency. This event allows civilian manufacturers to learn about military requirements by confronting them with real challenges in the field.
A platform used by the fire brigade
The TEC800 remotely operated robot is the result of several years of research and development in collaboration with the fire service. Thanks to its impressive performance, it is a real support during dangerous operations: risk of explosions, very low visibility, high temperature...
Technical specifications of the TEC800 robot
Included in the pack:
- 2 TEC800 batteries + charger
- 2 rubber tracks
- Front headlights (2x3500lm)
- Side headlights (2x1750lm)
- Rear headlights (2x3500lm)
- Front/rear signal light
- Hour meter
- Towing ball
- Front driving camera
- Rear driving camera
- IMU (inertial measurement unit)
- GNSS module (+ a second IMU included in the GNSS module)
- Two GNSS antennas on the robot to calculate the heading
- TECTab remote control
- WiFi radio module (1000m range in open field)
- Access ramps
Features:
- CE certified
- Two brushless electrical motors with parking brakes, temperature sensor and position sensor
- Shock absorbers, tension system, anti-roll system and locking hubs
- Max. payload: 800 kg
- Max. power: 17.8 kW
- Slope: 45°
- Side slope: 35°
- Stairs: yes
- Obstacle clearance: 35 cm
- Max. speed: 12 km/h
- Autonomy: up to 22 km
- Temperature: >500 °C (with self-protection option activated)
- Charging time: 4.5 h
- Removable Li-ion batteries
- Control system: WiFi (PT19) or military grade radio (PT20)
- Range: up to 5,000 m
- Monitoring:Sealing: IP66
Black box / Data logger
- Control interface: remote control and/or smartphone and/or rugged tablet (Windows, Android, iOS)
- Dimensions (w/o accessories): 1,600 x 685 x 790 mm
- Weight: 500 kg
Interfacing with the robot
The robot has a computer that merges data from the inertial unit, GNSS and wheel encoders. By connecting via Ethernet, you can also access information on the status of the robot and the battery and control the motors at speed.
To connect your payload (other sensors or PC), you also have access to a power connector (40 - 60V, 48V nominal).
TEC800 mobile robot resources
Examples of applications
Interested? Ask for a custom quote
The TEC800 mobile robot is a tracked, remote-controlled UGV unit. It’s a powerful and customisable platform, ideal for research and R&D centres wanting to work on robotics applications.
