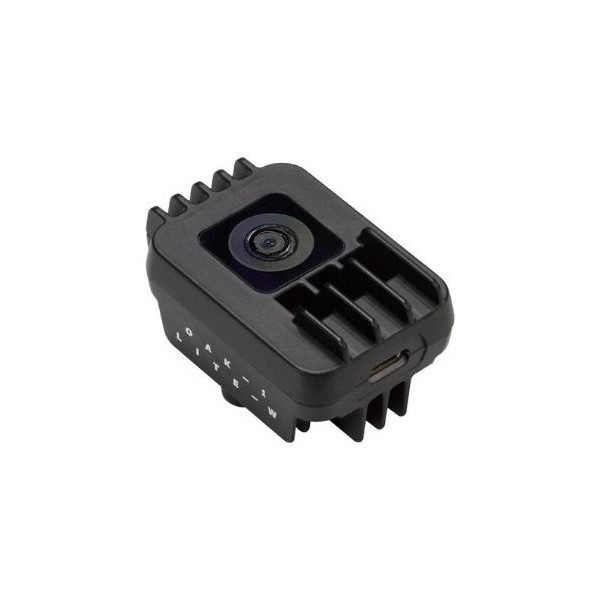

Luxonis OAK-1 Lite W Camera

An affordable camera with a wide field of view

OAK-D Lite W is a variant of OAK-1 Lite but with a Wider Field of View, making it ideal for a diverse range of projects.

Apart from that, OAK-1 Lite W offers the same features:

• 4 TOPS of processing power (1.4 TOPS for AI)
• Real-time image processing, directly on the device
• Numerous DepthAI features
• A high-performance SoC
• An interface integrated directly into Robotics Vision Core 2 (RVC2)

Technical specifications of the OAK-1 RGB camera

• USB-C connector for both power and communication, supporting USB2 and USB3 protocols (5Gbps / 10Gbps)
• 4 TOPS of processing power (1.4 TOPS for AI)
• Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
• Computer vision: warp/dewarp, resize, crop, edge detection, feature tracking
• Object tracking: 2D and 3D tracking
• Sensor: IMX214
• DFOV / HFOV / VFOV : 117°/105°/88°
• Resolution: 13MP (4208x3120)
• Focus: FF: 50cm - ∞
• Max Framerate: 60 FPS
• Dimension: 36 x 54.5 x 27.8 mm
• Weight: 53.1g

Package includes:

• OAK-1 Lite W camera
• Cable USB-CA-1m
• Cleaning cloth

Resources for the OAK-1 Lite W depth camera

• All OAK-1 Lite W documentation
• OAK-1 Lite W CE certificate
• DepthAI documentation
• Luxonis GitHub
