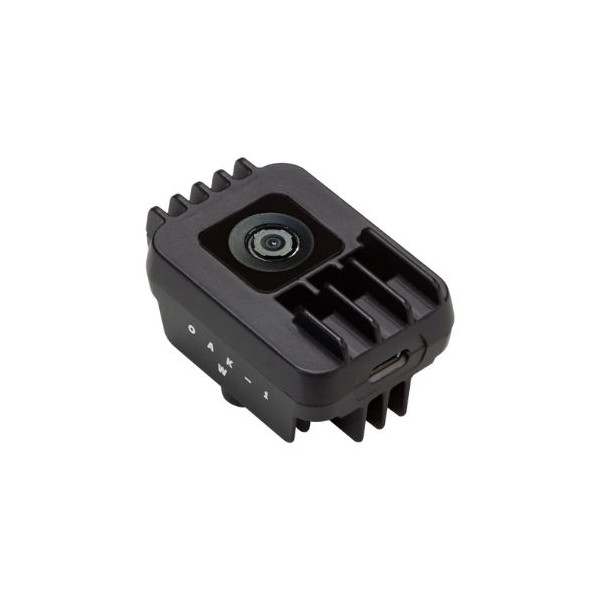

Luxonis OAK-1 W Camera

A compact and powerful camera with wide-angle vision

OAK-1 W is a 12-MP depth camera ideal for scenarios requiring the processing power of the Robotics Vision Core 2 (RVC2) VPU. It’s similar to OAK-1, but has a wider field of view, making it ideal for many types of project.

Despite its small size, this USB camera is still very powerful. It features a Wide FOV IMX378 colour sensor with the ability to run any AI model in real time.

OAK-1 W includes a USB-C connector for power and connectivity, compatible with USB2 and USB3 ports (5 Gbps / 10 Gbps).

Technical specifications of the OAK-1 W RGB camera

• USB-C connector for both power and communication,
• Run any AI model, even custom architectured/built ones
• Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
• Computer vision: warp/dewarp, resize, crop, edge detection, feature tracking
• Object tracking: 2D and 3D tracking
• Sensor: IMX378
• DFOV / HFOV / VFOV : 120° / 95° / 70°
• Resolution: 12MP (4032 x 3040)
• Focus: 8 cm - ∞
• Max Framerate: 60 FPS
• Dimension: 36 x 54.5 x 27.8 mm
• Weight: 53.1g

Package includes:

• OAK-1 W camera
• Cable USB-CA-1m
• Cleaning cloth

Resources for the OAK-1 W depth camera

• All documentation
• CE certificate
• DepthAI documentation
• Luxonis GitHub
