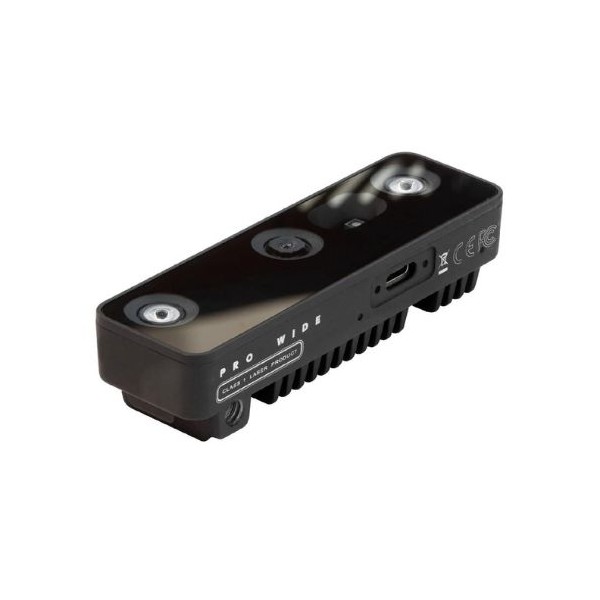

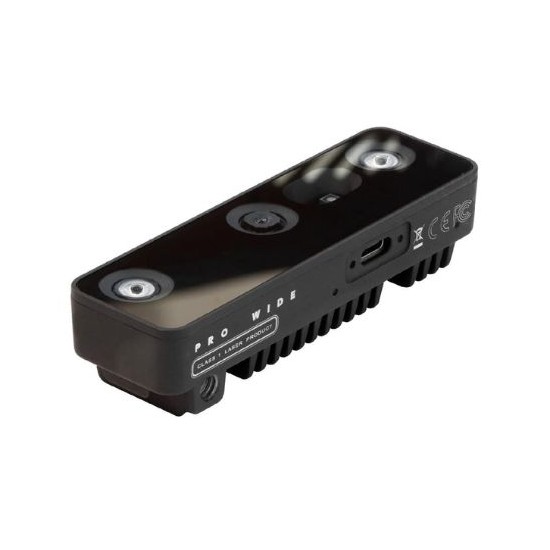

Luxonis OAK-D Pro W Camera

An ultra-wide field of view

OAK-D Pro W is a Series 2 OAK camera offering the following features:

• An IR illumination LED for perceiving low-light and no-light environments
• An IR laser dot projector (active stereo) for improved depth perception, especially for low-visual-interest surfaces (little or no surface texture)
• A wide field of view, making it ideal for many types of project
• 4 TOPS of processing power and the ability to run any AI model

The only differences between this model and OAK-D S2 are the IR laser dot projector, the IR illumination LED and the wide field of view.

Left: normal field of view / Right: wide field of view

USB and PoE: the differences

The OAK-D Pro W comes in 2 versions:

• A USB version with a USB-C connector for power and communication
• A PoE version equipped with an industrial M12 PoE connector (instead of a single RJ45) for power and communication, plus an M8 connector for IO connectivity

Comes in 2 versions:

The standard versions of both models (USB and PoE) come with the IMX378 RGB camera, although there is also a more sophisticated version with a OV9782 RGB camera.

This product is a Class 1 laser product under international standard EN/IEC 60825-1, edition 3 (2014).

Technical specifications of the OAK-D Pro W RGB camera

OAK-D Pro W

• USB-C connector for both power and communication, supporting USB2 and USB3 protocols (5Gbps / 10Gbps)
• IR illumination LED: allows perceiving low-light and no-light environments
• IR laser dot projector (active stereo): improves depth perception, especially for low-visual-interest surfaces (little or no surface texture)
• 4 TOPS of processing power (1.4 TOPS for AI)
• Run any AI model, even custom architectured/built ones
• Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
• Computer vision: warp/dewarp, resize, crop, edge detection, feature tracking
• Object tracking: 2D and 3D tracking
• Dimension: 97x29.5x22.9 mm
• Weight: 91g

Package includes:

• OAK-D Pro W camera
• Y-Adapter
• Cable USB-CA-1m

OAK-D Pro W PoE

• M12 X-Coded Ethernet, 802.3af PoE, 1 Gbps Ethernet
• M8 connector with quite a bit of IO flexibility, including USB2 host
• IP65 Sealed casing/protection
• Dimensions: 111x40x31.3mm
• Weight:184 g

Package includes:

• OAK-D Pro W PoE camera
• M12 plug to RJ45 cable, 2m
• M8 plug male to male cable, 2m
• Cleaning cloth

PoE injectors are not included in the package.

Resources for the OAK-D Pro W depth camera

• All OAK-D Pro W documentation
• All OAK-D Pro W PoE documentation
• OAK-D Pro W CE certificate
• OAK-D Pro W PoE CE certificate
• DepthAI documentation
• Luxonis GitHub
