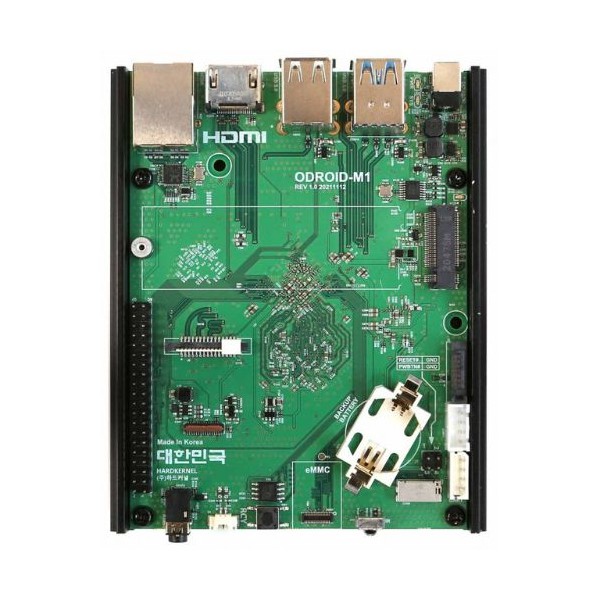

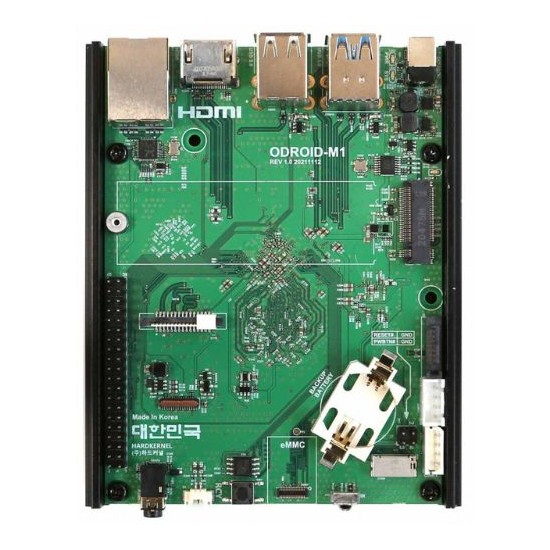

ODROID-M1 Development Board
Hardkernel | A-000000-06098
131.04 €
20 perc. French VAT inc.
The ODROID-M1 development board comes in 4 and 8 GB versions and features a Rockchip RK3568B2 CPU.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
ODROID-M1: a RK3568B2 development board
Looking for an alternative to Raspberry Pi? The ODROID-M1 could be a great choice! This single-board computer features a Rockchip solution with 4 ARM Cortex-A55 processors and multiple external storage options:
- microSDXC card readers
- M.2 NVMe 2280 PCIe 3.0 socket
- SATA 3.0 port
- eMMC module socket
The ODROID-M1 also has a wide range of connectors around its 40 GPIO pins, including:
- 1 Gigabit Ethernet port
- 1 HDMI 2.0 output
- 1 standard 3.5 mm jack
- 1 speaker output
- 2 USB 3.0 Type A ports, 2 USB 2.0 Type A ports and 1 micro USB 2.0 port
- 1 MIPI CSI 2-lane + 1 MIPI DSI 4-lane
The board also has an infrared receiver for remote control, and there are slots for a CR2032 battery, activity LEDs and jumpers. If you want to take things even further, you can even add a heat sink, WiFi, Bluetooth, webcam, metal case...
This RK3568B2 SoC can be used not only for various embedded system applications, but also in AI thanks to a dedicated module that will deliver up to 0.8 TOPS.
Technical specifications of the ODROID-M1 development board
- Processor: Rockchip RK3568 Quad-Core Cortex-A55 32-bit 1.992 GHz (ARM v8)
- Memory: 4 GB or 8 GB (depending on the model chosen) LPDDR4 RAM
- 40 GPIO pins
- Connectivity: micro USB 2.0 port, 2 USB 2.0 ports, 2 USB 3.0 ports, RJ45 Ethernet port (10/100/1000), HDMI 2.0 port, 3.5 mm audio jack
- Storage: eMMC port, microSD port, M.2 NVMe SSD port, SATA 3.0 port, 1 x SATA connector
- microSD slot
- Native SATA 3.0 port for use with a 2.5” HDD or SSD NAND memory storage device
- M.2 NVMe storage device (M-Key PCIe3.0 2-lane, standard size 22 mm x 80 m)
- SATA power (5 V only)
- Mono speaker output (1.3 W at 8 Ω load)
- MIPI CSI 2-lane
- MIPI DSI 4-lane
- SPI / UART
- SPI Flash 16 MB
- 2 system LED indicators and 1 M.2 LED indicator
- Integrated IR receiver
- Power and reset jumpers
- DC power jack
- RTC backup battery holder with DC socket (DC input: 7.5~15.5 V)
- Dimensions (LxWxH): 90 mm × 122 mm × 16 mm
- We recommend that you power your ODROID-M1 using a good quality 12 V / 2 A power supply
Resources for the ODROID-M1 development board
The ODROID-M1 development board comes in 4 and 8 GB versions and features a Rockchip RK3568B2 CPU.
