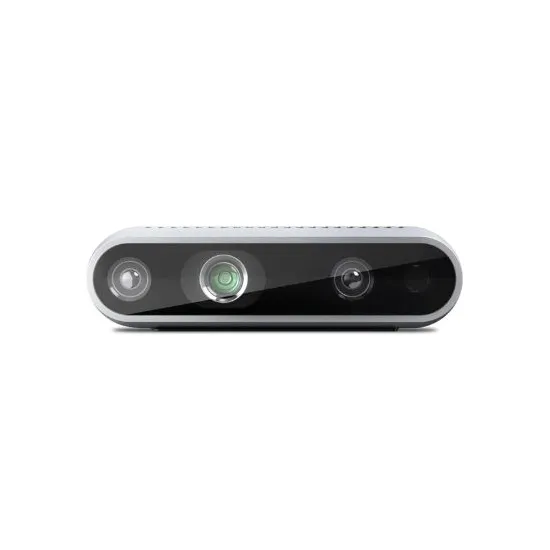

Intel® RealSense Depth Camera D435 (with tripod)

Intel® RealSense D435 depth camera: up to 90 fps

The D435 stereo camera belongs to the new D400 series of depth cameras equipped with the D4 vision processor by Intel® RealSense. This Intel® RealSense camera combines a depth sensor and an RG sensor in an extremely compact and lightweight format.

• The D435 stands out in particular for its depth sensor’s wide field of view, which reaches up to 86° x 57°
• With its global shutter system, this 3D camera promises superior sensitivity in low-light conditions, it can therefore operate at night and in the dark
• In well-lit environments, it benefits from a high frame rate (up to 90 frames per second), allowing slow motion and fast motion capture
• The RGB sensor guarantees a frequency of 30 fps for capturing gentle, subtle movement and landscapes

D435 3D camera: a stereo solution for robot vision

Like all the cameras in the D400 series, the D435 camera is designed for inclusion in complete robotic, digital and electronic solutions, including:

• Autonomous navigation on land and in the air
• Augmented reality and virtual reality
• Robotic surveillance applications
• Facial recognition, etc.

In short, any robotic vision solution developed for industrial, medical or commercial use.

The D435 comes with version 2.0 of the Intel® RealSense software development kit. It allows video calibration in a few quick steps, and development of customised software solutions on an open-source platform that runs on the three main operating systems.

Technical specifications of the D435 camera

• Indoor/outdoor camera
• Recommended range: about 10 m. (accuracy varies according to lighting, calibration and location)
• Global shutter, 3 µm x 3 µm pixel size
• IR stereo technology
• Depth FOV: 86° x 57° (+/- 3°)
• Minimum depth: 10.5 cm
• Depth output resolution: up to 1280 x 720
• Depth frame rate: up to 90 fps
• RGB sensor technology: global shutter
• Sensor resolution: up to 1920 x 1080
• RGB sensor FOV: 69.4 x 42.5 x 77° (+/- 3°)
• RGB frame rate: up to 30 fps
• Intel RealSense D430 camera module + RGB camera
• Intel RealSense Vision Processor D4
• Connectors: USB-C 3.1 Gen 1
• Dimensions: 90 x 25 x 25 mm
• Mounting mechanism:
  • One 1/4-20 UNC threaded mounting point
  • Two M3 threaded mounting points
  • Camera supplied with tripod

Resources for the D435 depth camera

You’ll find lots of information and tips in the resources we’ve gathered here for the Intel® RealSense D435 depth camera:

• Datasheet - Intel RealSense D400-Series
• Development centre - Intel RealSense D400-Series
