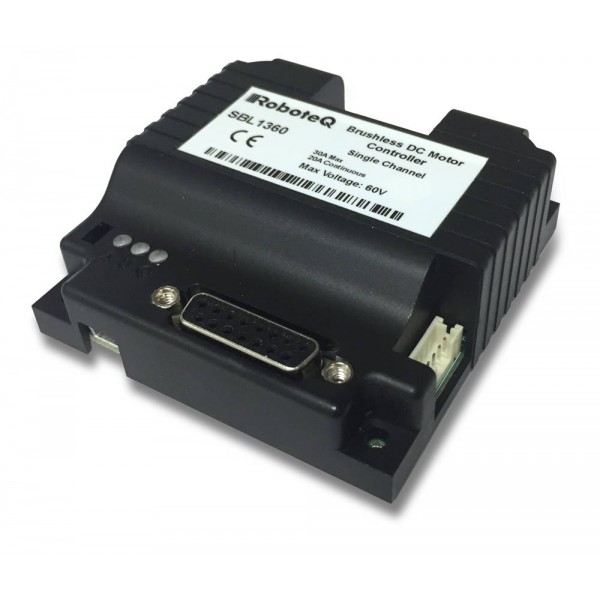

Brushless Motor Controller Roboteq 1 x 30A 60V - SBL 1360 A

SBL 1360 A brushless motor controller: up to 127 networked controllers

This Roboteq controller is designed to drive motors equipped with a Hall effect sensor. It uses the information received from the sensor to generate smooth continuous motor rotation. It can also be used with a sensorless motor, in which case you simply need to choose the sensorless trapezoidal control mode.

You can network up to 127 controllers on a single twisted pair cable thanks to CAN bus communication. This allows you to control a large number of DC motors with no complex wiring.

Using the SBL 1360 A controller with RoboRun+

You can configure and customise your brushless motor controller using the MicroBasic language. Roboteq has designed a PC utility, called RoboRun+, to help you intuitively write and edit lines of code. Its pull-down menus, buttons and sliders makes programming simpler. There is a RoboRun+ licence available for free download, or you can choose to purchase the RoboRun+ Pro licence for working with larger volumes of source code.

Technical specifications of the SBL 1360 A motor controller

• Compatible motor type: brushless DC
• Max. voltage: 60V
• Number of channels: 1
• Direction: forward/reverse
• Max. power per channel: 30A
• Continuous power per channel: 20A
• ON resistance: 20 mOhms
• Power connections: screw terminal
• Sensorless trapezoidal control enabled
• Field oriented control (FOC)
• Communication: analogue, RS232, USB, CAN bus
• Control loop: 1 ms
• Regenerative braking
• Analogue inputs: 6 max.
• Digital inputs: 6 max.
• Digital outputs: 2
• Pulse inputs: 4 max.
• Encoder: yes
• Cooling: conduction plate
• Safe Torque Off (STO): no

• Dimensions: 70 x 70 x 27 mm
• Weight: 60 g

Resources for the Roboteq SBL 1360 A controller

Stock up on all the documentation you need for your Roboteq SBL 1360 A Brushless Motor Controller thanks to the resources that we’ve compiled for you below:

• Datasheet Brushless Motor Controller SBL 1360 A - Roboteq
• Datasheet errata
• Roboteq controller user manual v2.0
• Roborun+ user guide
• Roborun+ PC utility (en)
• MicroBasic scripting manual (en)
• CAN networking manual (en)
• ModBus manual (en)
