YF2A15-020UB5XLEAX cable for SICK lidar

YF2A15-020UB5XLEAX Cable: a reliable connection for industrial applications

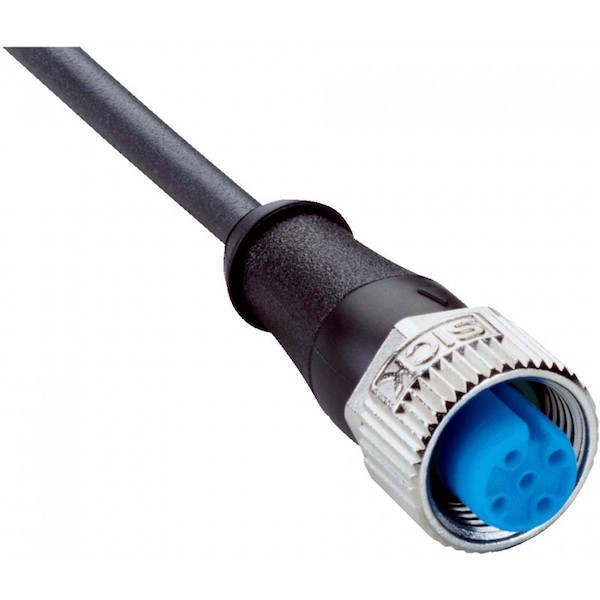

This SICK laser range finder cable has a 5-pin M12 female connector head. Its connector can be screwed using the robust nickel-plated zinc die-cast nut.

It has a connection cable that allows you to use it for fixed or mobile drag-chain operations, plus it is extremely resistant whatever the type of movement. In drag chain mode, the bending radius of the cable is greater than 10 times its diameter, i.e. 48 mm. Its level of protection makes it entirely suitable for use in an industrial environment; it is designed to resist dust and water splashes (cleaning lances).

Technical specifications of the YF2A15-020UB5XLEAX laser range finder cable

• Connection type head A: female connector, M12, 5-pin, straight, A-coded
• Connection type head B: flying leads
• Screw connector
• Connector material: TPU
• Connector colour: black
• Locking nut material: zinc die-cast, nickel-plated
• Seal material: FKM
• Tightening torque: 0.6 Nm
• Width across flats: 13
• Cable: 2 m, 5-wire, PUR, halogen-free
• Jacket material: polyurethane, halogen-free
• Jacket colour: black
• Cable diameter: 4.8 mm
• Conductor cross-section: 0.34 mm²
• Unshielded
• Bending radius:
  • Flexible use: > 10 x cable diameter
  • Stationary position: > 5 x cable diameter
  • Drag chain operation: > 10 x cable diameter
• Bending cycles: 5000000
• Reference voltage: ≤ 125 Vdc
• Rated impulse voltage: 1.5 kV
• Current loading: 4A
• Traversing speed: 3.3 m/s
• Height: 5 m
• Acceleration: ≤ 5 m/s²
• Signal type: sensor/actuator cable
• Torsional force: 180°/1 m
• Torsion cycles: 2000000
• Cycles per minute: 35
• Application:
• zones with oils and lubricants
• drag chain operation
• Authorisations: CE, UL
• UL file no.: E335179
• Enclosure rating: IP65/IP66K/IP67
• Ambient operating temperature:
• Flexible use: -25 to 80°C
• Stationary position: -40 to 80°C
• Drag chain operation: -25 to 80°C
• Head: -25 to 85°C
• Contamination rating: 3
• Insulation resistance: 100 MΩ
• Overvoltage category: III
• Specific insulation resistance: 30 MΩ

Resources for the YF2A15-020UB5XLEAX connecting cable

Here is a link to the complete YF2A15-020UB5XLEAX cable datasheet:

• YF2A15-020UB5XLEAX connecting cable for SICK lidar datasheet
