TIM551 - Sick indoor and outdoor laser scanner for short-range measurement

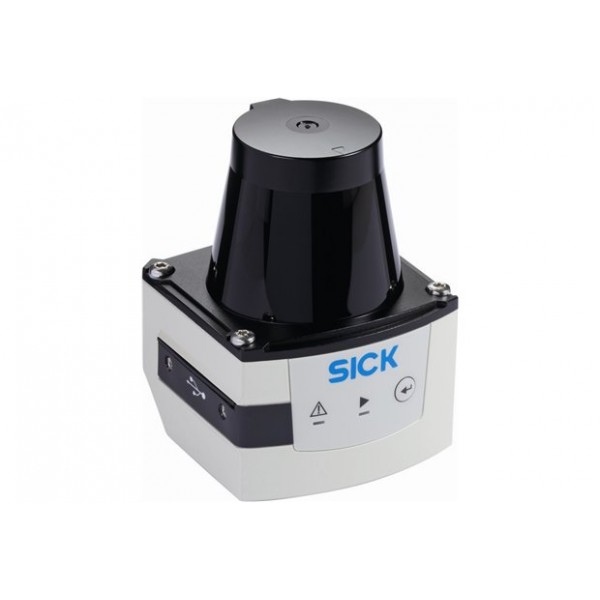

The Sick TIM551 laser scanner

The TIM551 laser scanner allows monitoring of a zone up to 235 m² using a single sensor. Thanks to its HDDM technology, which gives it high tolerance to ambient light, its industrial design and its IP67 rating, the TIM551 laser scanner is sturdy enough and has the quality to live up to all your expectations.

Technical characteristics of the Sick TIM551 laser scanner

The characteristics of the Sick TIM551 laser scanners are as follows:

• Functions
  • Indoor use
  • Light type: Infrared (850 nm)
  • Angle: 270 °
  • Angular resolution: 1 °
  • Scan frequency: 15 Hz
  • Class 1 laser (no eye hazard (EN 60825-1))
  • Range: 0.05 m – 10 m
  • Maximum range with 10% reflectivity: 5 m

• Performances
  • Response time: 134 ms
  • Object shape detectable: Almost all
  • Systematic error: ± 60 mm
  • Statistical error: ± 20 mm
• Interfaces
  • Electrical connection: 1 × “ethernet” connection, one female M12 connector, 4-pin, 1 × “power/synchronisation output” connection, 5-pin, male M12 connector, 1 × micro USB type B female connector
  • Supply voltage: 10 V DC ... 28 V DC
  • Connection: micro USB
  • Binary input: 0
  • Binary output: 1 (SYNC / Device ready)
  • Optical indicators: 2 LEDs (ON, Device ready)
  • Delay: 134 ms – 30,000 ms (programmable)
• Physical characteristics
  • Weight: 150 g
  • Dimensions: 60 x 60 x 86 mm
  • Consumption: 3 W
  • Enclosure rating: IP67
  • Protection class: III
  • Operating temperature range: -25 °C to +50 °C
  • Storage temperature range: -30 °C to +70 °C
  • Vibration resistance: EN 60068-2-6
  • Impact resistance: EN 60068-2-27
