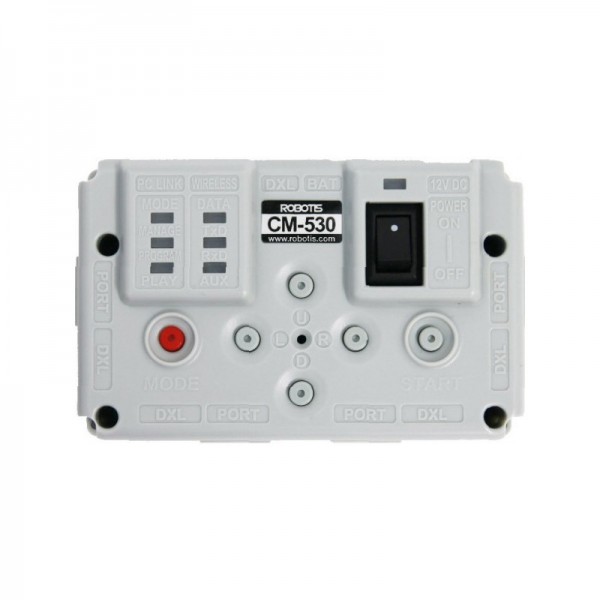

CM-530 main controller

CM-530 main controller

CM-530 main controller
Robotis | A-000000-00088
€134.40
20 perc. French VAT inc.

Including €0.05 for ecotax

The CM-530 main controller drives your Dynamixel servomotors AX and MX. It carries a ARM Cortex STM32F103RE microcontroller and is programmed in USB with the RoboPlus software.
Quantity
In backorder
This product is on backorder. You can place an order on our website or send us a purchase order in PDF format
Contact us to know the delivery times

Create a cart and turn it into a quote instantly!
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

Description of the CM-530 main controlleur

CM-350 main controller for dynamixel servomotors by robotis

The CM-350 main controller contains a ARM Cortex STM32F103RE microcontroller, 3-pin connectors to communicate using TTL protocol and 5-pin connectors to add devices (sensors for example). It is designed to command Dynamixel servomotors from the ranges AX (bioloid kits) and MX-xxT (DarwinOp robot. Warning: the MX-xxR servomotors use RS485 communication protocol).

The CM-350 main controller supports Bluetooth and Zigbee communications.

Connecting the CM-530 main controller

  • PC Link (Serial Cable): Use the included USB cable to connect the CM-530 main controller to your computer and download your code.
  • Communication Device Connection Jack: Used for wireless communicate with ZIG-110, IR receiver modules or other boards
  • Battery Jack: Used to connect with the Bioloid battery (11.1V LiPO battery, not included).
  • Power Jack: Used to connect the SMPS power supply (12V 5A, not included).
  • Power LED: ON and OFF LED for the power
  • Power Switch: Used to turn the robot ON / OFF.
  • MODE Button: Used to change the operation mode of CM-530. The three mode LEDS allow you to visualize the current mode:
    • MANAGE: Dynamixel Management Mode, used to set or test the operations of CM-530 and AX/MX Dynamixel using RoboPlus Manager. Automatically executed when RoboPlus Manager and CM-530 main controller are connected.
    • PROGRAM: motion edit mode, used when the motions are edited with RoboPlus Motion. Automatically executed when RoboPlus Motion and CM-530 main controller are connected.
    • PLAY: task code mode. Used after downloading the written code to CM-530 main controller with with RoboPlus Task. The Start button must be pressed directly by the user to execute when PLAY LED flickers.
  • START Button: Used to START selected mode.
  • Status Display LED: TxD LED is on while CM-530 main controller is transmitting the data to the outside, RxD LED is on while CM-530 main controller is receiving the data from the outside. The AUX led is at your disposal, it can be turned ON or OFF using task code.
  • U / L / D / R buttons: Used for input purposes when a program is playing on the CM-530 main controller. These buttons can be used to send commands to the robot.
  • AX/MX Serise Bus Port (3 pin): Used to connect the AX/MX-xxT Dynamixel servomotors in a daisy chain method.
  • Peripheral Devices Connection Port (5pin): Used to connect Distance Measurement Sensor, Touch Sensor, IR Sensor, and peripheral devices. The port numbers for each port are represented in bars such as I , II , III, IIII , IIIII , and IIIIII.

Specifications of the CM-530 main controller

  • Weight : 54g
  • Controller : ARM Cortex STM32F103RE
  • Working Voltage : 6V ~ 15V. Recommanded voltage: 11.1V (Li-PO 3cell)
  • Consumed Current
    • When IDLE : 50mA
    • Exterior I/O Maximum Current : 300mA
    • Overall Maximum Current : 10A (Fuse)
  • Working Temperature : -5℃~70℃
  • Internal I/O Device
    • 5 buttons
    • 1 microphon
  • External I/O Device
    • 6 OLLO Peripheral-Device Compatible 5 pin I/O Port
    • 5 3-Pin Connector for Dynamixel using TTL Communication
