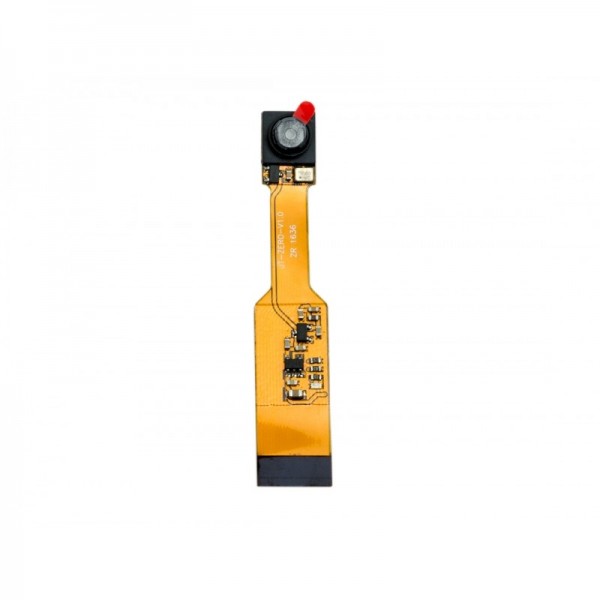

Mini Camera for Raspberry Pi Zero

Raspberry Pi Zero Camera: make the most of your CSI port

The W and 1.3 versions of the Raspberry Pi Zero board include a CSI port, which was designed especially for interfacing to cameras. They are thus compatible with the mini camera for Raspberry Pi Zero, presented here with a dedicated ribbon cable.

Just connect your Raspberry Pi Zero camera module to benefit from functionalities previously only available to users of the original Raspberry Pi module.

An efficient camera module for your Raspberry Pi Zero

This Raspberry Pi mini camera has the same sensor and specs as the camera module v1:

• It includes a 5-megapixel OV5647 sensor;
• It supports various video recording formats (1080p at 30 ips, 720p at 60 ips, and so on);
• It attaches to your Raspberry Pi using a CSI ribbon cable, so that the USB ports remain free.

Technical specifications of the mini camera for Raspberry Pi Zero

• Compatible with the Raspberry Pi Zero W and v1.3
• OV5647 5-megapixel sensor
• CCD size: ¼”
• Field of view: 72.4°
• Sensor resolution: 1080p
• Still image resolution: 2592x1944
• Supported video recordings: 1080p30, 720p60, and 640x480p60/90
• Dimensions: 60 x 11.5 x 5 mm
